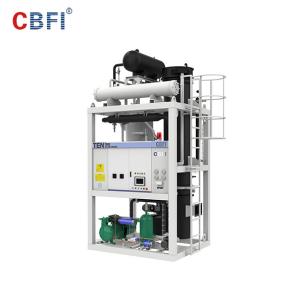

3T Ice Tube Maker Machine With Germany Compressor Freon System

  • 1
  • 2

Brand Name : CBFI

Model Number : TV30

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Price : USD 9500~10000000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 50 to 60 sets/month

Delivery Time : 35 days after the deposit

Packaging Details : wooden case

Compressor : Germany compressor

tube ice diameter : 35mm, 28mm, 22mm

Evaporator : Stainless steel 304 seamless pipe

Cooling way : Water cooling

Daily Capacity : 3000kg/24h

Control system : Touch screen with English

PLC : Siemens system

Origin : Guangzhou, China

Material : 304 Stainless steel

Refrigerant : R404A

Contact Now

Germany Compressor Freon System 3 ton tube ice machine

1. Crystal tube ice

3T Ice Tube Maker Machine With Germany Compressor Freon System

3T Ice Tube Maker Machine With Germany Compressor Freon System

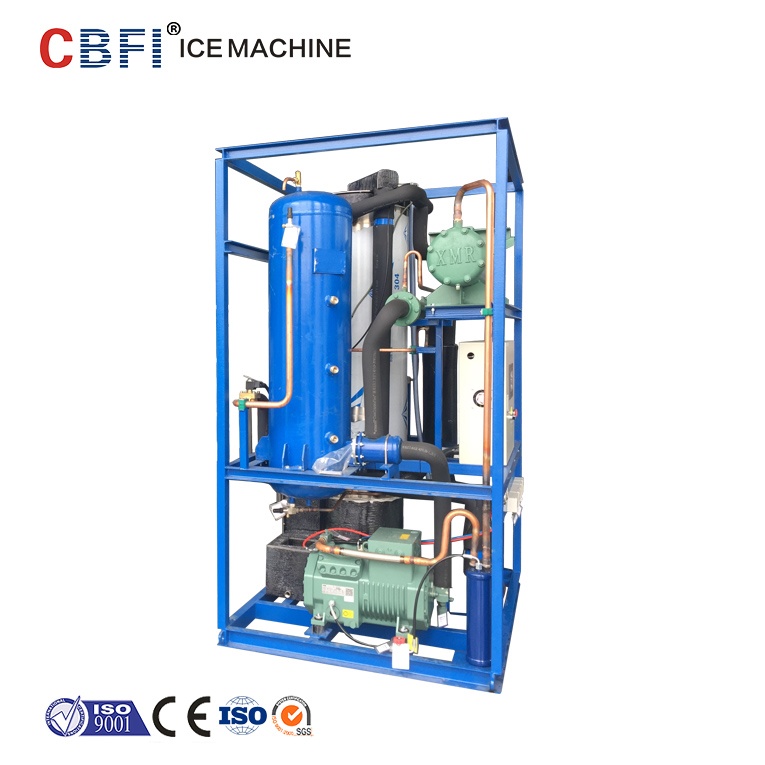

2. CBFI tube ice machine pictures

3T Ice Tube Maker Machine With Germany Compressor Freon System

3 ton tube ice machine

3T Ice Tube Maker Machine With Germany Compressor Freon System

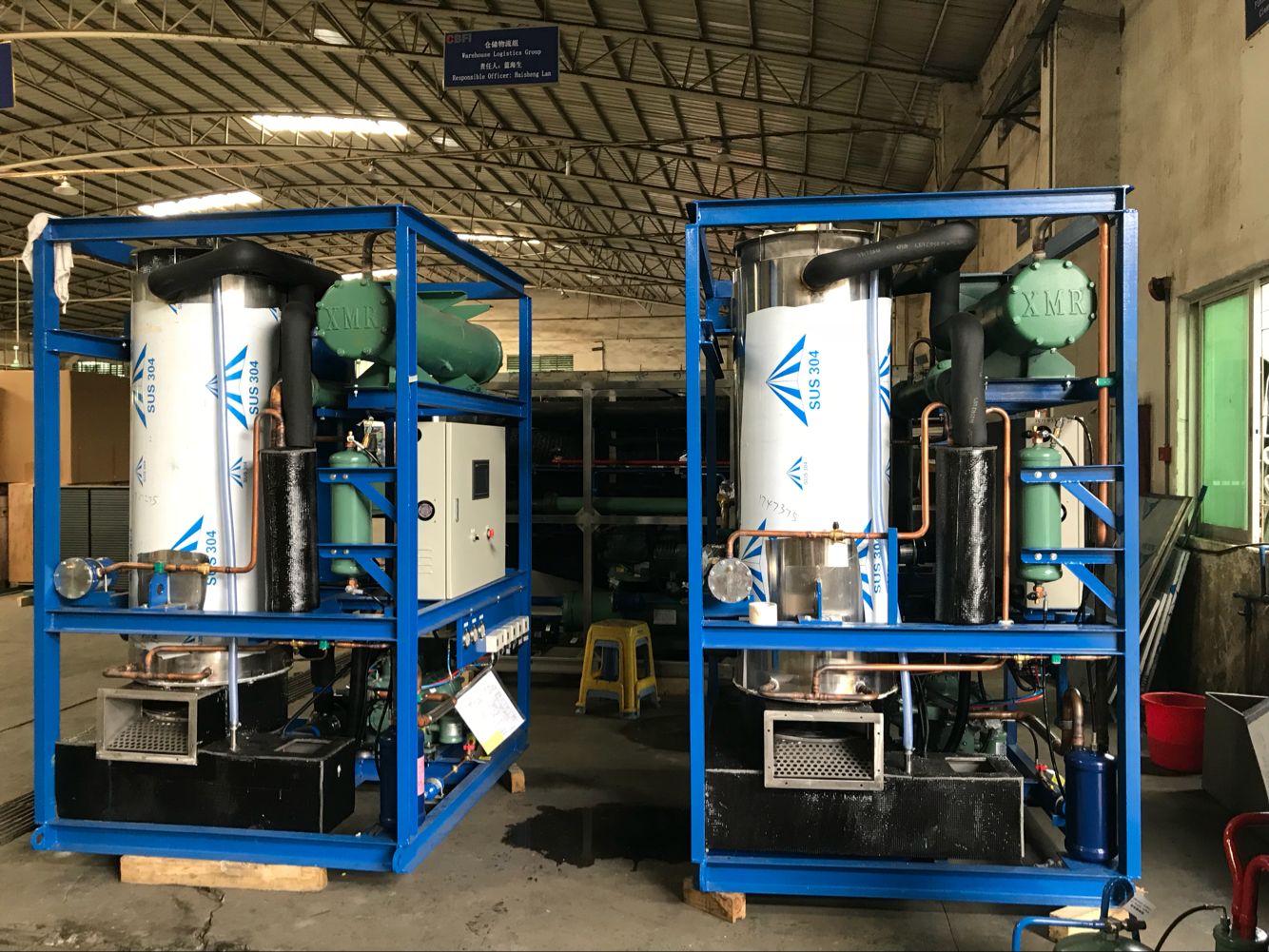

2 sets 3 ton tube ice machine in our factory

3. Machine parameter

Model
Ice Making
Capacity
Rated
Power

Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
 Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
 kw
W*H*L(mm)

KG
TV10
1.0
4.28
0.55
1.1
0.18
 0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
 0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
 0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
 1.5
1600*1400*2250
1800

TV100

10.0
29.2
1.5
4
1.5
 1.5
1200*1200*3100

2300*1550*1800
3500
TV150
15.0
49
2.2

5.5
1.5
 1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
 2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
 2.2
3000*2200*2500

2200*1900*6200
7200

4. Main Features
1:Perfect design: adopting 3D simulation assembly, compact structure, small land area.
2:Full automatically: the whole ice making process is automatically controlled by PLC system.
3:Healthy ice: all the parts which contact with ice making water is made of SUS304 material to ensure totally clean ice
4:Low power consumption: the evaporator adopts special alloy material and is processed by special heat treatment to ensure best heat conductibility.
5:No ice dropping problem:CBFI’s patent hydraulic expansion technique can avoid ice dropping problem.
6:Fast ice dropping:the whole ice dropping process takes within 120 seconds making full use of hot Freon gas in the system.

5. Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor Germany /Bock
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China Nan Fang
9 Evaporator Material Stainless Steel 304 (SUS304)

6. Customer cases

CBFI 30 ton tube ice machine in Indonesia

3T Ice Tube Maker Machine With Germany Compressor Freon System

CBFI 30 ton tube ice machines in Malaysia

3T Ice Tube Maker Machine With Germany Compressor Freon System
