Cube Ice Machine For India ice factory
1.Nice ice made by CBFI cube ice machine
2.Cube ice size for choose, 22*22*22,29*29*22 or 38*38*22mm.

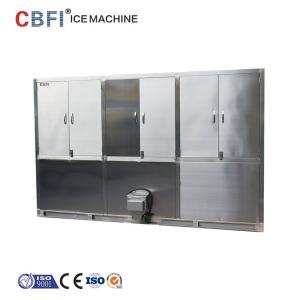

3.CBFI 5 ton cube ice machine
4. We have capacity from 1 ton to 20 tons per day, following is the parameter for your reference:
| Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Machine Dimension | Weight of Machine |
| | Ton/24H | KW | KW | KW | KW | L*W*H | KG |
| CV1000 | 1.0 | 3.69 | 0.37 | 1.5 | 0.37 | 1200*1000*1600 | 800 |
| CV2000 | 2.0 | 7.11 | 0.37 | 1.5 | 0.55 | 1630*1600*1686 | 1000 |
| CV3000 | 3.0 | 9.68 | 0.37 | 2.2 | 0.75 | 1980*1630*1840 | 1200 |
| CV5000 | 5.0 | 17.47 | 0.55 | 2.2 | 1.5 | 2890*1780*1840 | 1600 |
| CV8000 | 8.0 | 28.52 | 1.1 | 4 | 1.5 | 4820*1780*2000 | 2500 |
| CV10000 | 10.0 | 37.68 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
| CV15000 | 15.0 | 52.41 | 1.65 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
| CV20000 | 20.0 | 75.36 | 2.2 | 8 | 3 | 11460*1780*2100 | 6000 |

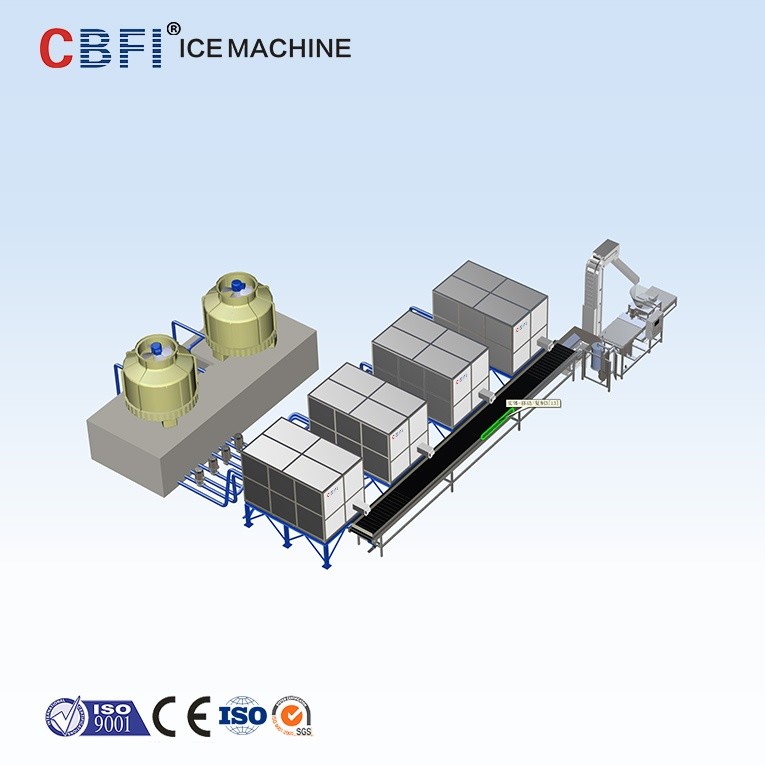

5.Ice plant 3D drawing
6. CBFI Ice machine processing in factory
1)Cuting and bending material
2) biuld up machine frame
3) Assemble the refrigeration system of machine
4) Testing machine capacity
7. Customer case:
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
The machine unit had been tested in our factory for 3days continuously.So,the machine unit can start once electric power has been connected and water supply has been connected.
Machine packing:
8. Electricity components
All the parts are using internationl famous brand, such as Denmark Danfoss expansion valve, Germany Siemens PLC, etc.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
9. Company Information
CBFI Guangzhou Icesource Refrigeration Equipment Co., LTD is located in Guangzhou city, China. It is near the Baiyun International Airport and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is convenient for load and transport goods and for customers to come to visit our factory.
We started in researching, developing and selling all kinds of ice machines since 2004.
Sales and marketing office
Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice machine, flake ice machine, ice packing machine, ball ice machine, edible flake ic emachine, nugget ice machine and cold room.
Our company has passed the Britain BV certification on the spot, ISO9001 certification and ISO14001 certification.
We warmly welcome you come to us, visit our factory and give us suggestion, let us make progress, thanks!
